Project Description
Applications
CNG and Bio-Gas dispenser for car, bus and truck filling & CNG and Bio-Gas trailer load/unload systems.
Product Information
All products are manufactured under ISO 9001 accredited standards.
The FULL FLOW design means more gas is dispensed faster to the vehicle, maximising the number of vehicle fills per day and minimising wasted gas.
Fill valve & fueling nozzle designed to ANSI AGA NGV I Standard
Fill valve complies with PED 97/23/EC
Features & Specifications
- 180 Degree Fill Valve Body Design with NGV1 P30/P36 Nozzle Assembled
- Designed to ANSI AGA NGV1
- Fill Valve complies with PED 97/23/EC
- Inlet Connection is Female 3/4 – 16 SAE
- Extended Cycle Testing to Ensure Longevity
- Port Adaptor Options Available Upon Request
- Hardened Segment Connection Nozzle Design Increases Gripping Surface Area & Reduces Wear in Receptors
- Part Nrs.
– FV103-0-AD6-A (FV with P30)
– FV103-0-AD6-B (FV with P36)
Service Kits

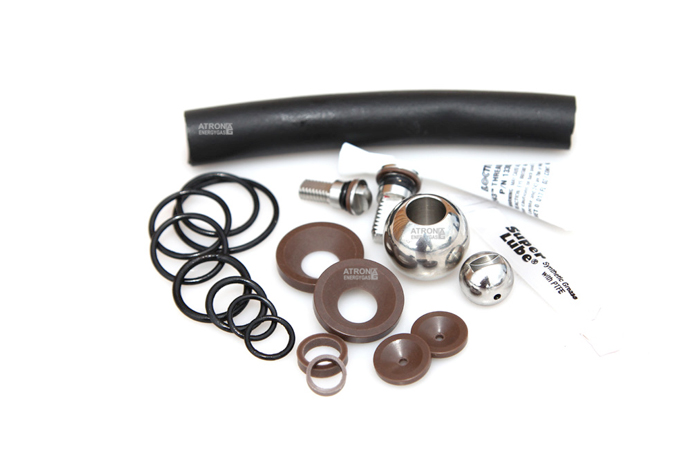

FV103-SKDN
Fill valve service kit for sealing components, recommended to be replaced on or before the maximum cycles before re-kit as identified in product specifications.

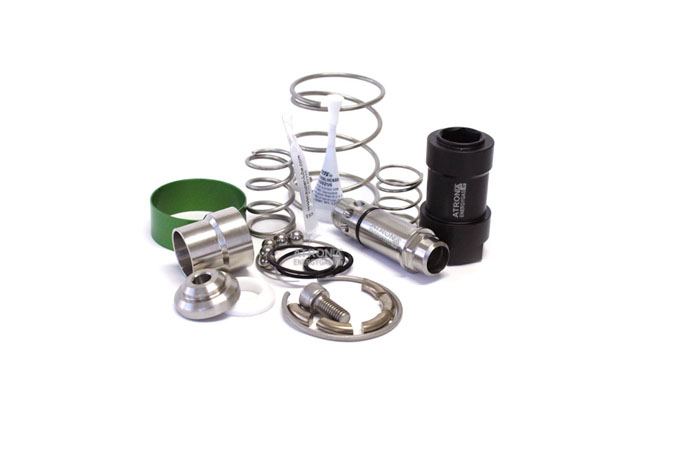

NC103-SKNGV1
NGV1 P30/P36 nozzle service kit, recommended to be replaced on or before the maximum cycles before re-kit as identified in product specifications

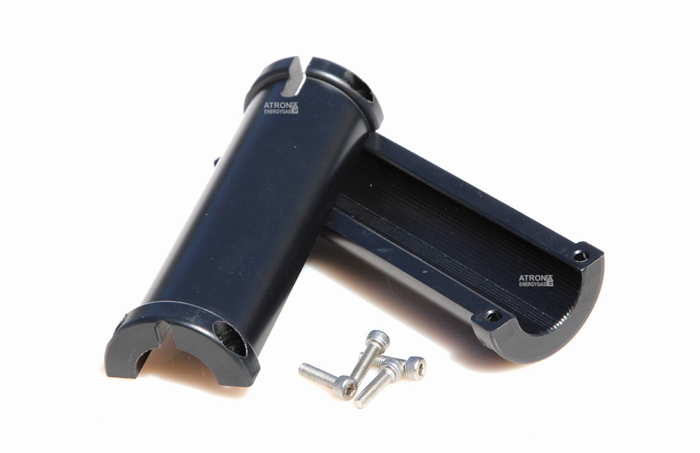

FV103-17
Fill valve 2 piece handle sleeve, to be replaced as required

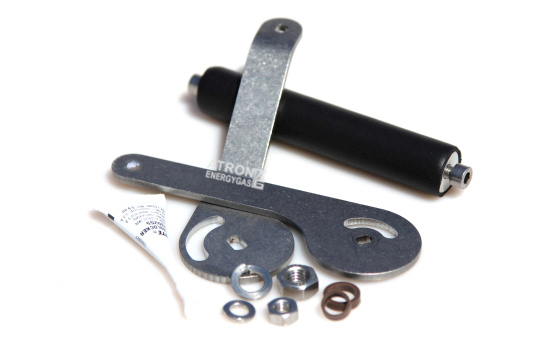

FV103-70
Fill valve handle replacement kit, to be replaced as required
